A Complete Guide to Siemens 5SL4 Series Miniature Circuit Breakers (MCBs)

Miniature Circuit Breakers (MCBs) are important safety devices in electrical installation. They protect circuits from overloads and short circuits. MCBs are crucial in homes, offices and factories to ensure power distribution and prevent electrical hazards.

What Are Miniature Circuit Breakers (MCBs)?

An MCB is an electrical switch. It stops flow when current gets too high. Unlike fuses that need to be replaced, MCBs trip and reset easily. This allows restoration of circuit protection without changing parts.

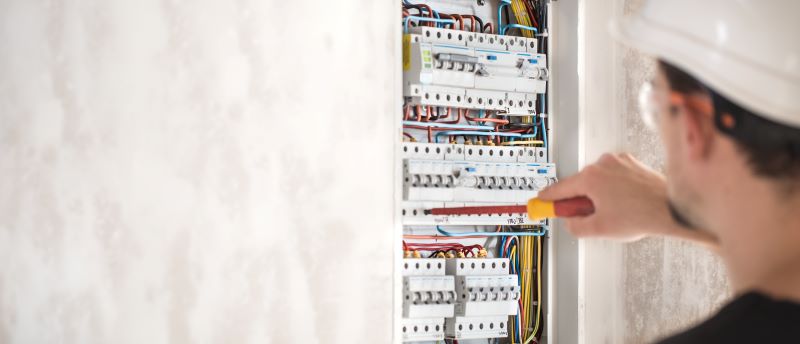

MCBs are used in distribution boards, machinery panels, and building systems. They ensure safety and maintain system integrity.

The Siemens 5SL4 Miniature Circuit Breaker Range

The Siemens 5SL4 Miniature Circuit Breakers are a robust MCB portfolio. They are designed for electrical infrastructures. These breakers are part of the Siemens SENTRON 5SL4 series. They are known for performance, modularity, and safety.

Key Features

1. Reliable Protection Against Faults

The 5SL4 breakers protect against overloads and short circuits. This ensures system components are not damaged by excessive current.

2. Wide Performance Range

The 5SL4 breakers are available in ratings from 0.3 A to 63 A. They cover small control circuits to larger loads. They have a breaking capacity of up to 10 kA. This makes them suitable for industrial and commercial applications.

3. Tripping Characteristics for Diverse Needs

The series supports tripping curves:

• • B Curve – For homes and light general circuits.
• • C Curve – For industrial loads and small motors.
• • D Curve – For high inrush loads like machinery and industrial equipment.

Choosing the curve ensures accurate protection and avoids nuisance tripping.

4. Easy Installation and Integration

The 5SL4 breakers have a bus-mounting concept. This makes installation and expansion easier without tools. You can add accessories like switches or fault signal contacts easily.

5. Compatibility With Accessories

The 5SL4 breakers work with additional components, such as:

• Arc Fault Detection Devices

• Undervoltage Releases

• Shunt Trips

This modular design allows customization of protection schemes.

Practical Applications

The Siemens 5SL4 MCBs are versatile and reliable for:

• Distribution panels

• Commercial buildings

• Power distribution systems

• Control panels and equipment protection

Their broad range and optional tripping characteristics make them suitable for almost any low-voltage application.

Why Choose Siemens 5SL4 Breakers?

• Safety First: Protection against overloads and faults.

• Flexible Range: Supports various loads and system sizes.

• Tool-Free Installation: Reduces commissioning time.

• Expandable With Accessories: Tailor protection for complex systems.

• Trusted Brand Reliability: Backed by Siemens electrical standards.

Miniature Circuit Breakers like the Siemens 5SL4 series are very important components in electrical protection systems. They prevent hazards and are easy to install. They come in a range of products making them indispensable for modern power distribution. Whether you’re setting up an electrical panel or upgrading an existing system, choosing the right MCB can significantly enhance safety and reliability.

For technical specifications, download the official Siemens 5SL4 MCB PDF - PI_SENTRON_5SL4 Miniature Circuit Breakers
